Plastic pallet washer and dryer_ Máy rửa pallet

1. Equipment overview

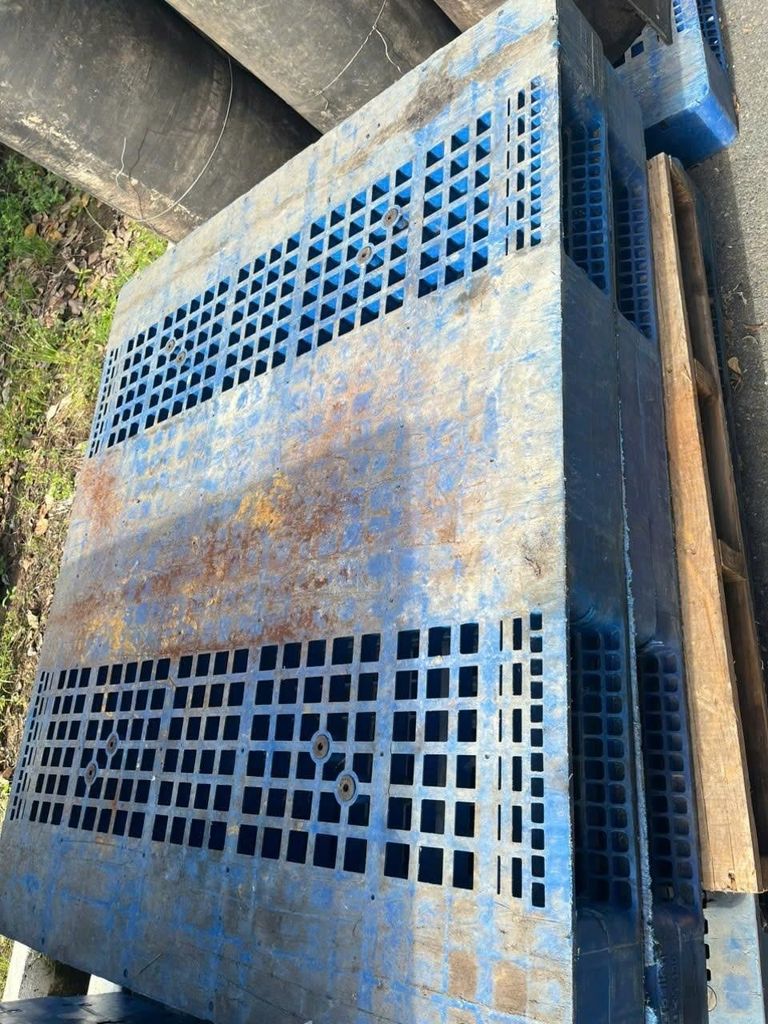

This cleaning machine can be removed and removed from the dust, cobweb, etc. attached to the plastic pallet. (Except for plastic aging, damaged, pollutant adhesion, except for long -term unprocessed)

Work process:

1. Put the pallet into the feeding site of the washing machine
2. The first level of cleaning (hot water+alkali washing agent, if need) Pre -cleaning and scrubbing treatment of pallet
3. Brush, install a rotating brush above the pallet, rotating brush to clean the pallet  surface.
4. The second level of cleaning (hot water) plays the role of the main cleaning, rinse the tray with 5BAR water pressure
5. Third water tank to clean the pallet again to make sure the pallet cleaning
6. Then enter air blower machine, high pressure to blow the surface water


2. Machine performance

• The whole machine plate is made of food grade 304 stainless steel
• Using 304 stainless steel pump head pump, the quality is reliable, the maximum cleaning pressure of the motor efficiency can reach 5 bar
• Solid 304 transmission shaft life is long without deformation without deviation
• leaning water source cyclic use, reduced utilization rate reduction waste
• Three -level filtration to a large extent increases the use time of water source filters to remove and clear filtration debris
• Control components use Domestic well-known brand CHINT , which are accurate and reliable
• The internal drawing of the device is drawn and polished, and there is no sanitary dead corner
• This machine is set up with an emergency stop device, located on the ease of operation
• Set up an observation port on both sides of the device to observe the internal operation
• The normal operation of polishing non -sharp edges and corners inside and outside the device will not cause damage to the operator
• The conveying speed frequency conversion can be adjusted, and different conveyor speeds can be implemented according to the degree of pollution.
• Set up running and fault alarm devices. The top of the control box that is easy to observe is convenient for checking equipment failure
• Automatic liquid level protection, automatic cutting of water dehydration, heating and pump power supply
